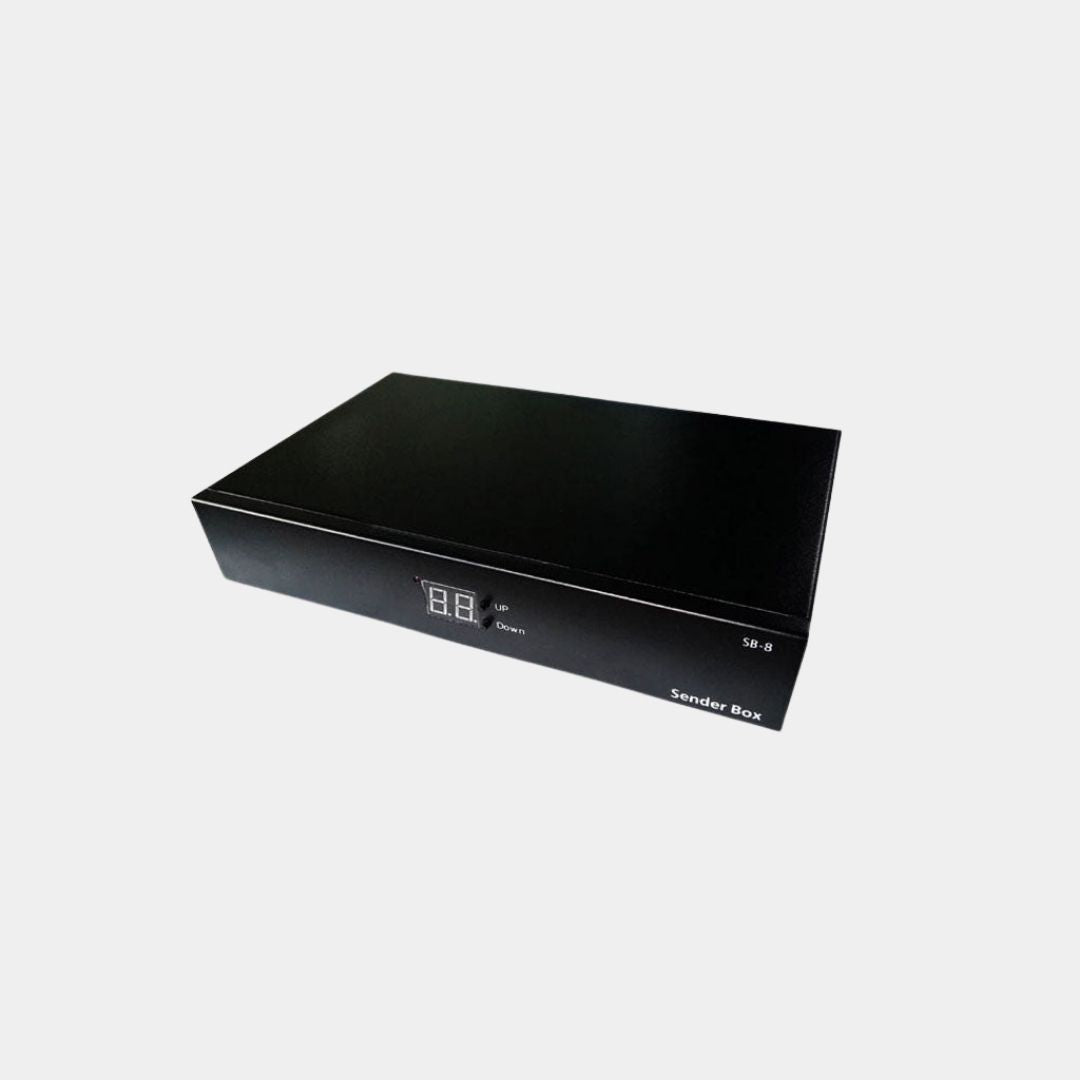

Linsn TS852D

TS852 sending box is a video display controller for the LED wall developed by Linsn. Its function is equivalent to the TS802 sending card, with the voice transmission and cascade functions working with RV901 receiving cards. Support up to 2048x1024 pixels with zoom and rotate function.

1) One DVI video signal input

2) One Audio signal input

3) The sending card is set by USB; it can be cascaded to drive a larger screen; up to 4 cards cascaded

4) Support adjusting brightness manually; three scales can be set:16-grade, 32-grade and 64-grade

5) Independent power supply

6) Support 60Hz and 30Hz output mode

1) Setting Interface
- USB

2) Input
- DVI

3) Output
- RJ45

4) Net Weight
- 1.4kg

5) Length
- 280mm

6) Width
- 178mm

7) Height
- 50mm

8) Input Voltage
- 100 ~ 240V AC
