Huidu VP820A

Name: Huidu VP820A
Brand: Huidu
SKU: ET-2505-LVP-VP820A
Price: 720.00 USD
Availability: InStock

$720.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

Confused about the model names?
Can't find the model you want?

Click Here to Contact Us for Consultation and Quote

🔘All-in-One Video Controller / Processor
🔘Max Input Resolution: 4096×2160@60Hz
🔘Max width 8192 pixels, Max high 4096 pixels
🔘Loading Capacity: 5.2 million pixels

Huidu VP820A is a two-in-one video processor that integrates a traditional video processor and 8 -wayGigabit Ethernet output. It not only simplifies the on-site environment construction, but also improves the reliabilityof theproduct. It supports 5- way synchronous signal input and can be used in hotels, shopping malls, conferencerooms, exhibitions, studios and other occasions that require synchronous playback; in addition, thedevicealsosupports point-to-point input/output, allowing the LED screen to display clearer images.

Features

• Video signals can be switched, cropped, and scaled at will;
• Support 16 scene presets and calls ;
• Support brightness adjustment, color temperature adjustment and key lock functions ;
• Support arbitrary overlapping of network ports and non-rectangular load;
• Support point-to-point display and limited to full conversion;
• Support RS232 serial port protocol control and docking with central control equipment;
• Support Wi -Fi Station mode, AP mode, Wi-Fi Station + AP mode;
• Support mobile phone APP wireless control;
• Support infrared remote control (optional);
• Support SDI (optional);
• Support 4G (customized).

Additional Information

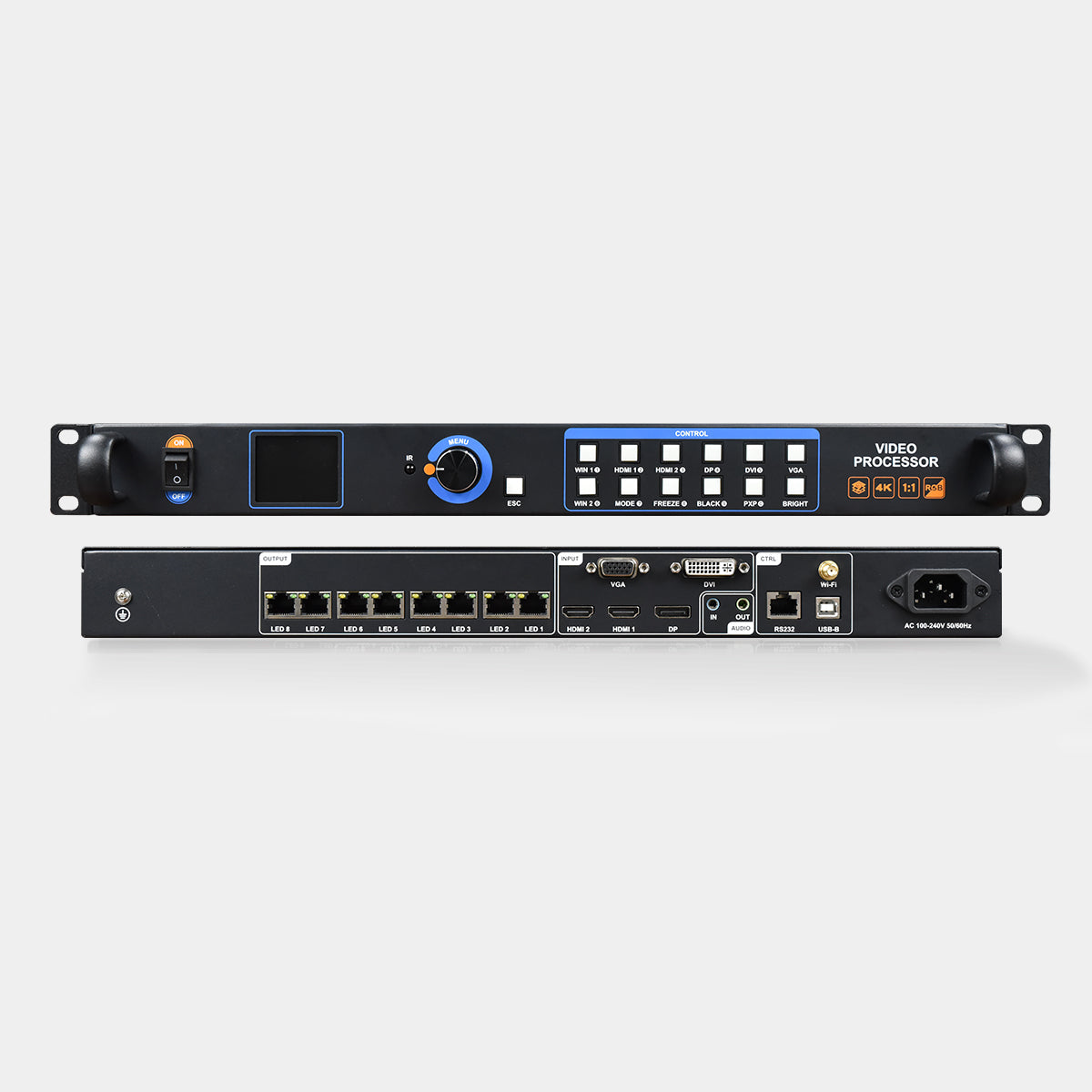

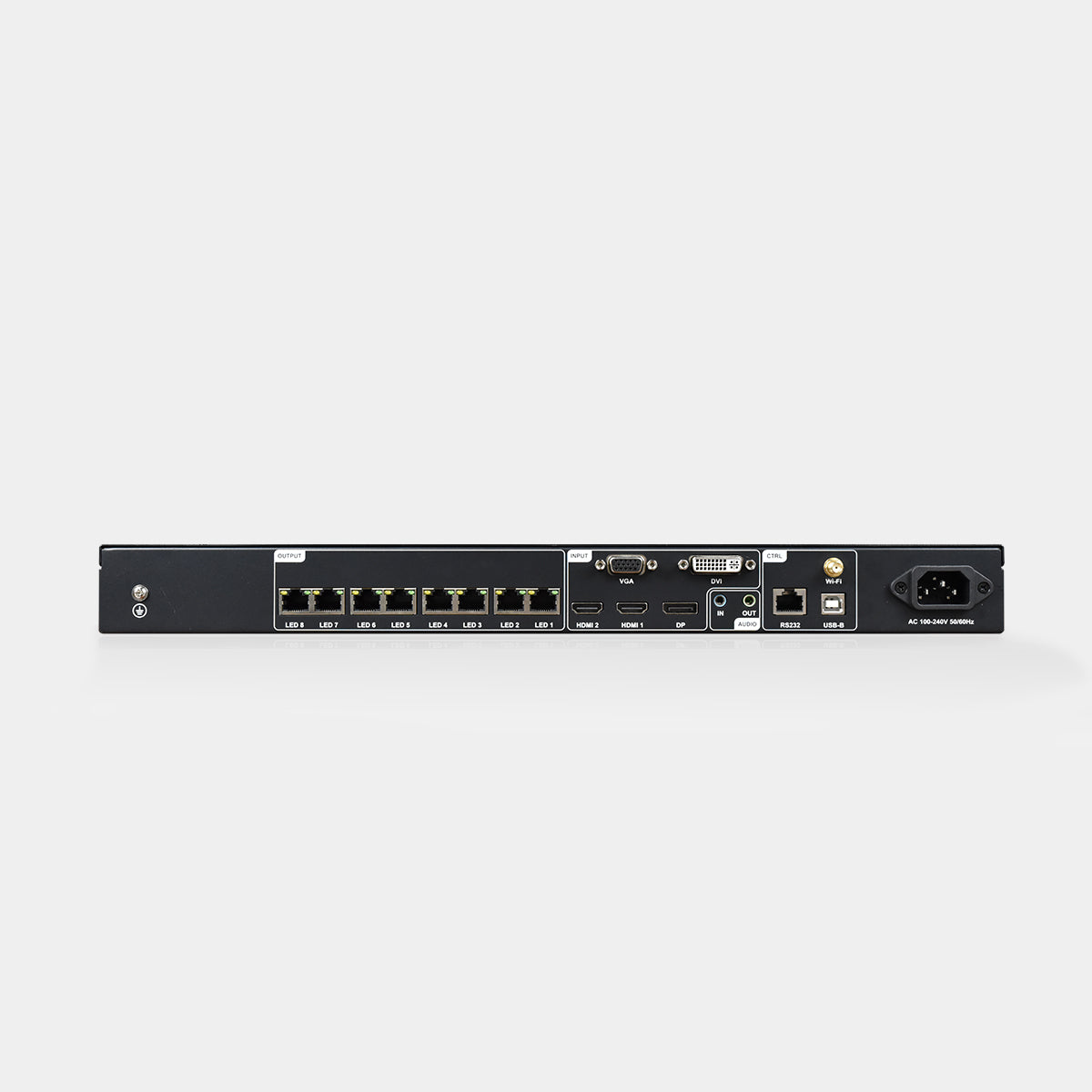

Connectors
- Inputs -
1 x DP1.2
2 x HDMI1~2
1 x DVI
1 x VGA
1 x SDI
1 x AUDIO IN
1 x Power supply

- Outputs -
8 x Gigabit network port
1 x Grounding interface
1 x SDI-LOOP
1 x AUDIO OUT

- Control -
1 x SIM card slot
1 x RS232
1 x USB-B
1 x Wi-Fi antenna
1 x 4G antenna

Power
Power supply: AC 100~240V, 50/60Hz
Power consumption: 50W

Dims & Weight
Size: W×H×D/482mm×44mm×240mm
Net weigh: 2.9KG
