Huidu VP1640A

Name: Huidu VP1640A
Brand: Huidu
SKU: ET-2505-LVP-VP1640A
Price: 880.00 USD
Availability: InStock

$880.00

Free Shipping on Orders Over $500
2% OFF for orders over $700
3% OFF for orders over $1400
5% OFF for orders over $2800

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Note: The discount will be automatically applied at checkout if your order qualifies under any of the conditions above.

Confused about the model names?
Can't find the model you want?

Click Here to Contact Us for Consultation and Quote

🔘All-in-One Video Controller / Processor
🔘Max Input Resolution: 3840×2160@60Hz
🔘Max width 16000 pixels, Max high 4000 pixels
🔘Loading Capacity: 10.4 million pixels

HD-VP1640A is a two-in-one video processor for LED display, whichintegrates16 Gigabit Ethernet port outputs and supports four-screen display. It has7channelsof synchronous signal input, supports up to 4K video signal input (someinterfaces),and can switch between multiple synchronous signals at will. It canbeusedinhotels,shopping malls, conference rooms, exhibitions, studios and other occasionsthatrequire synchronous playback. At the same time, VP1640A is equippedwithWi-Fifunction as standard, and supports mobile APP wireless control.

Features

• Support 4K@60Hz synchronous signal input, point-to-point display.
• Support four-screen display, support any layout of the screen.
• Support 8 scene presets and calls.
• Standard Wi-Fi, support mobile phone APP wireless control.
• Support brightness adjustment and key lock function.
• Support mobile phone/tablet wireless projection.

Additional Information

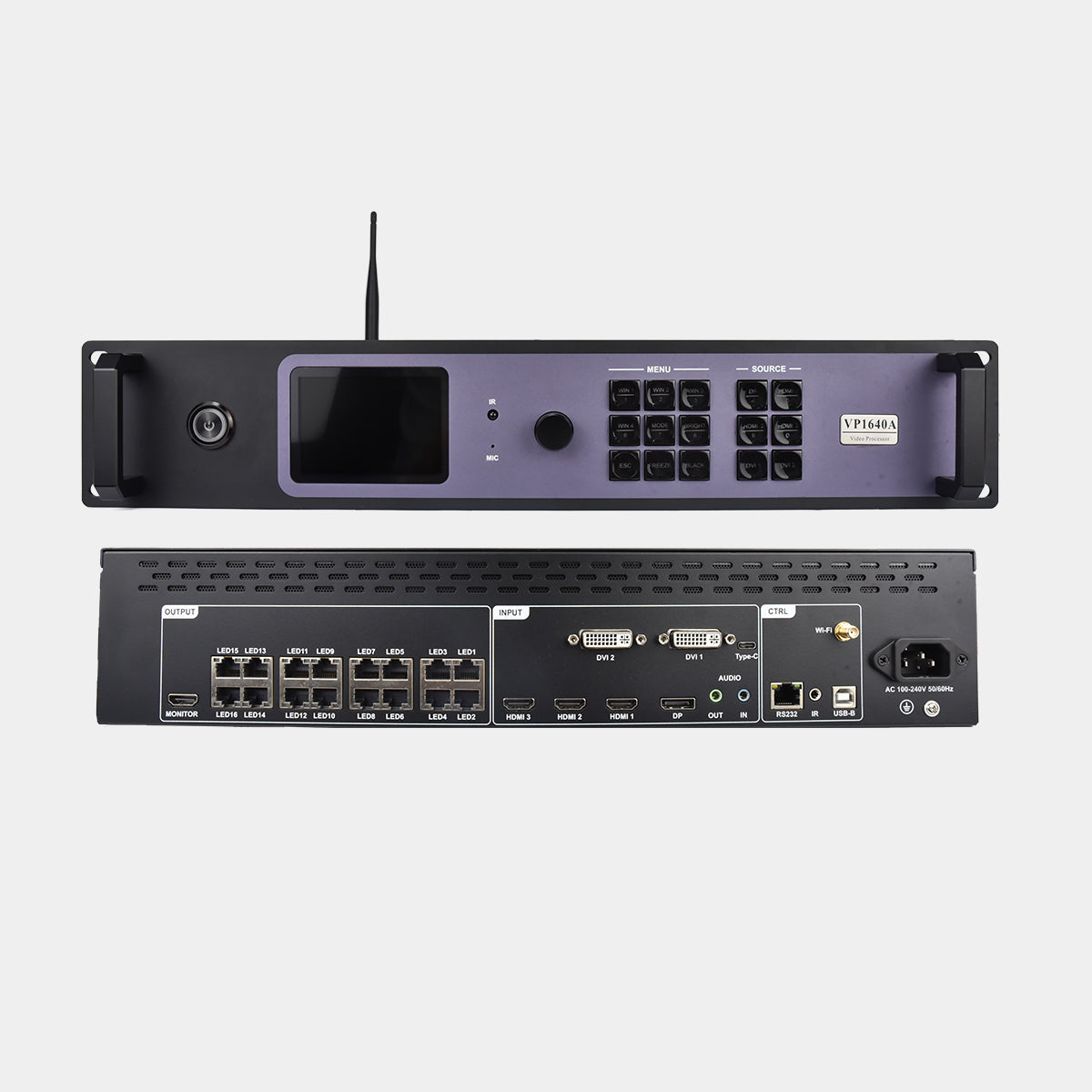

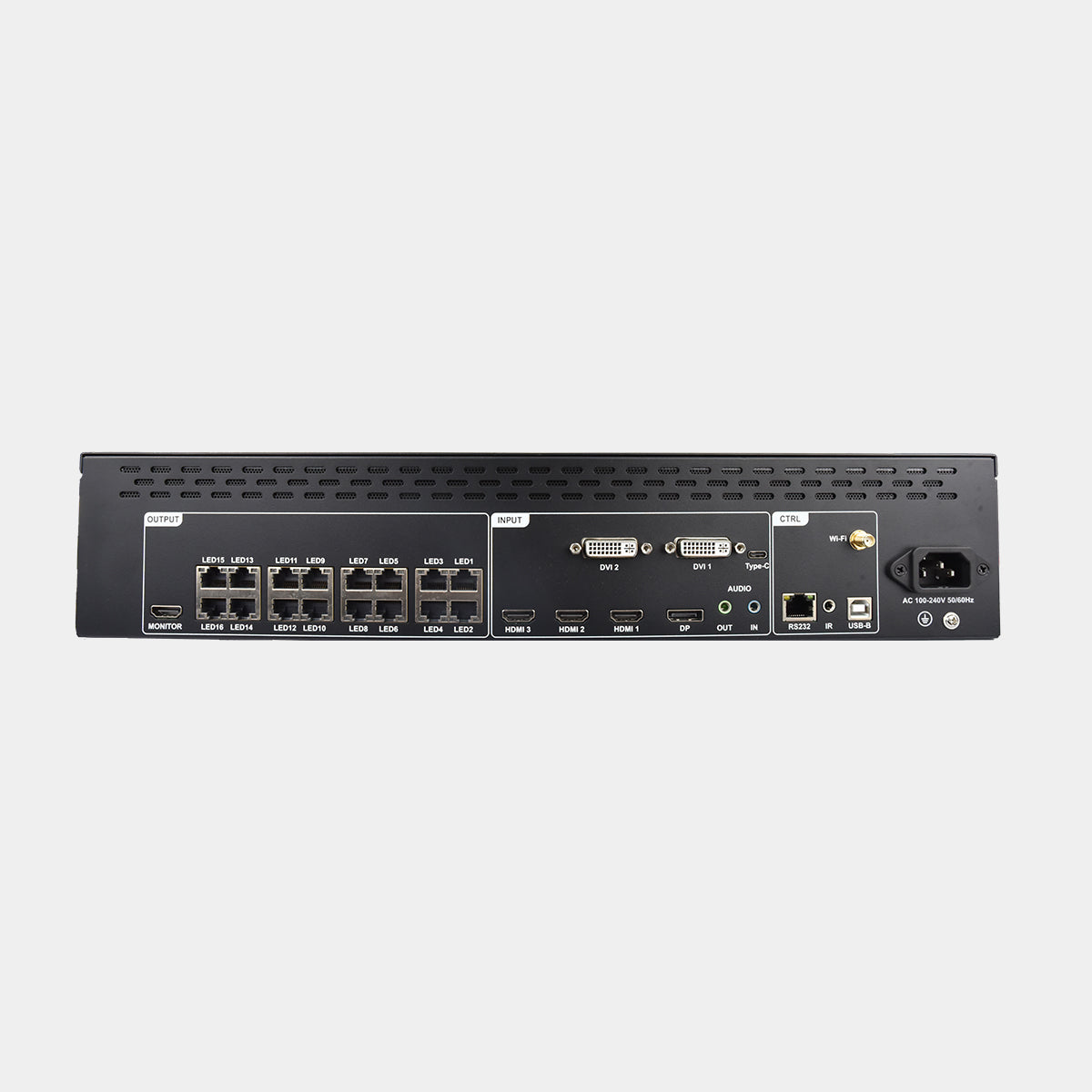

Connectors
- Inputs -
1 x Type-C
1 x DP
1 x HDMI 2.0
2 x HDMI 1.4
2 x DVI
1 x SDI
1 x AUDIO IN
1 x Power supply

- Outputs -
16 x Gigabit network port
1 x AUDIO OUT
1 x SDI-LOOP

- Control -
1 x RS232
1 x USB-B
1 x Wi-Fi antenna
1 x IR
1 x 4G
1 x SIM
2 x Screen Cast Wi-Fi

Power
Power supply: AC 100-240V 50/60Hz
Power consumption: 50W

Dims & Weight
Size: W×H×D/482mm×88mm×297mm
Net weigh: 4KG
