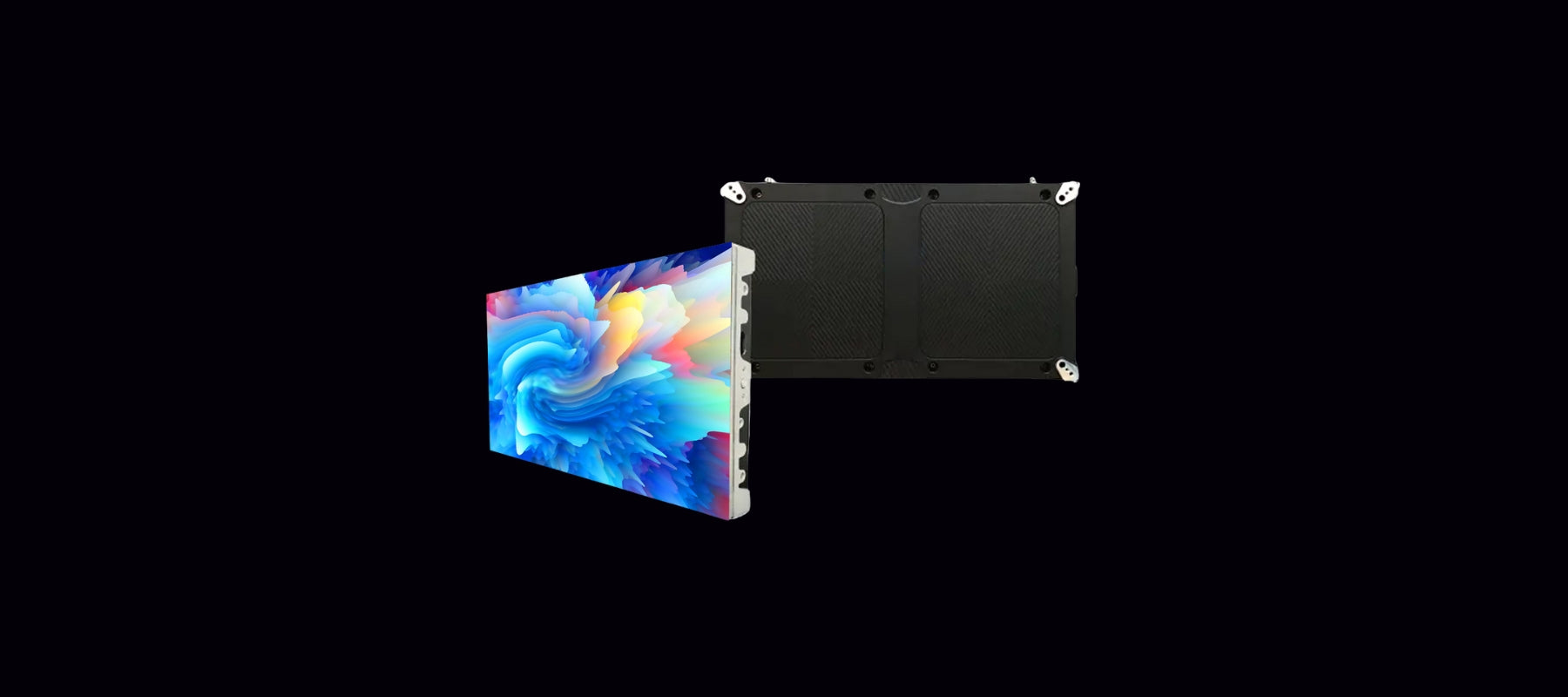

Ultra-Fine Pitch LED Video Panel
COB LED - KF Series
Explore KF Series

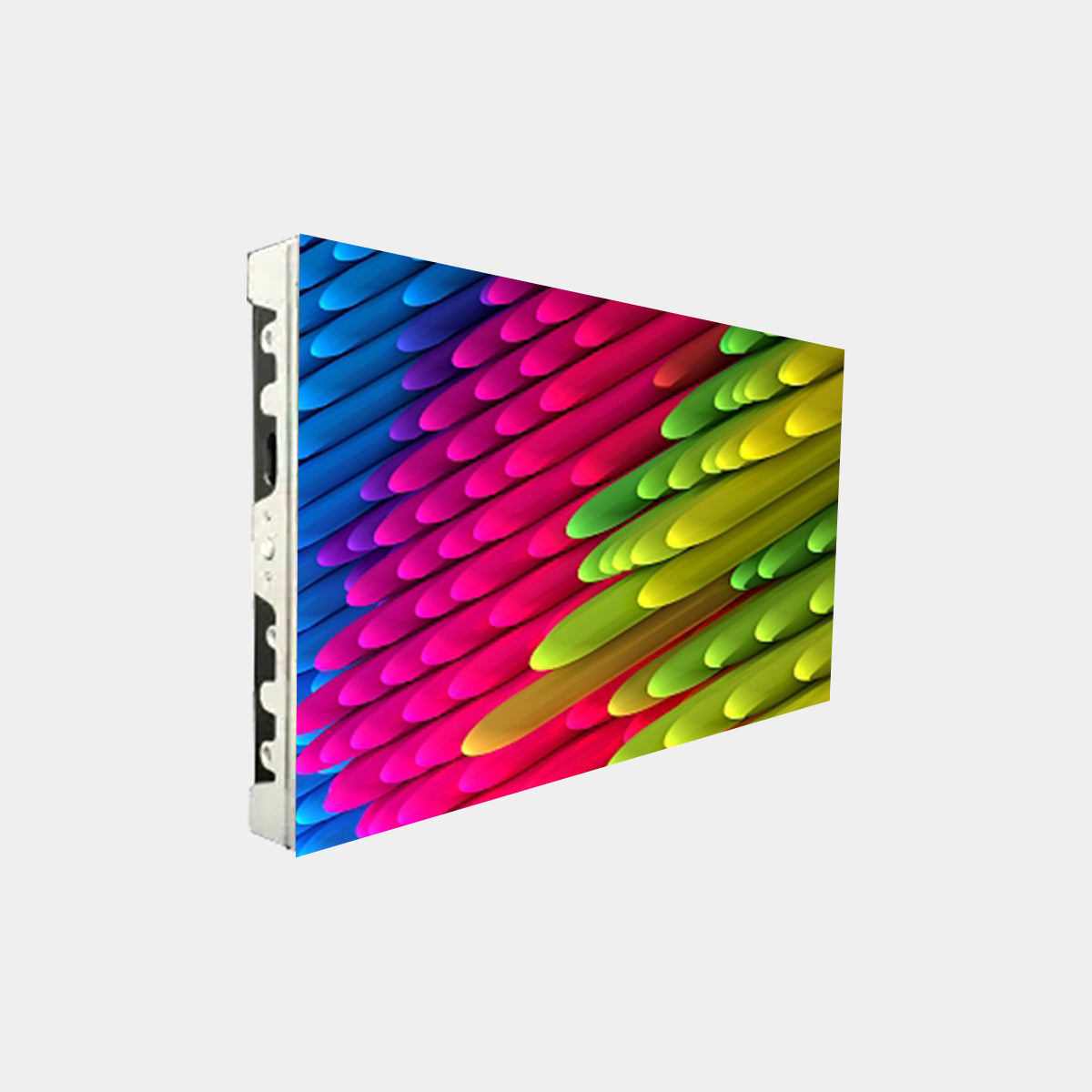

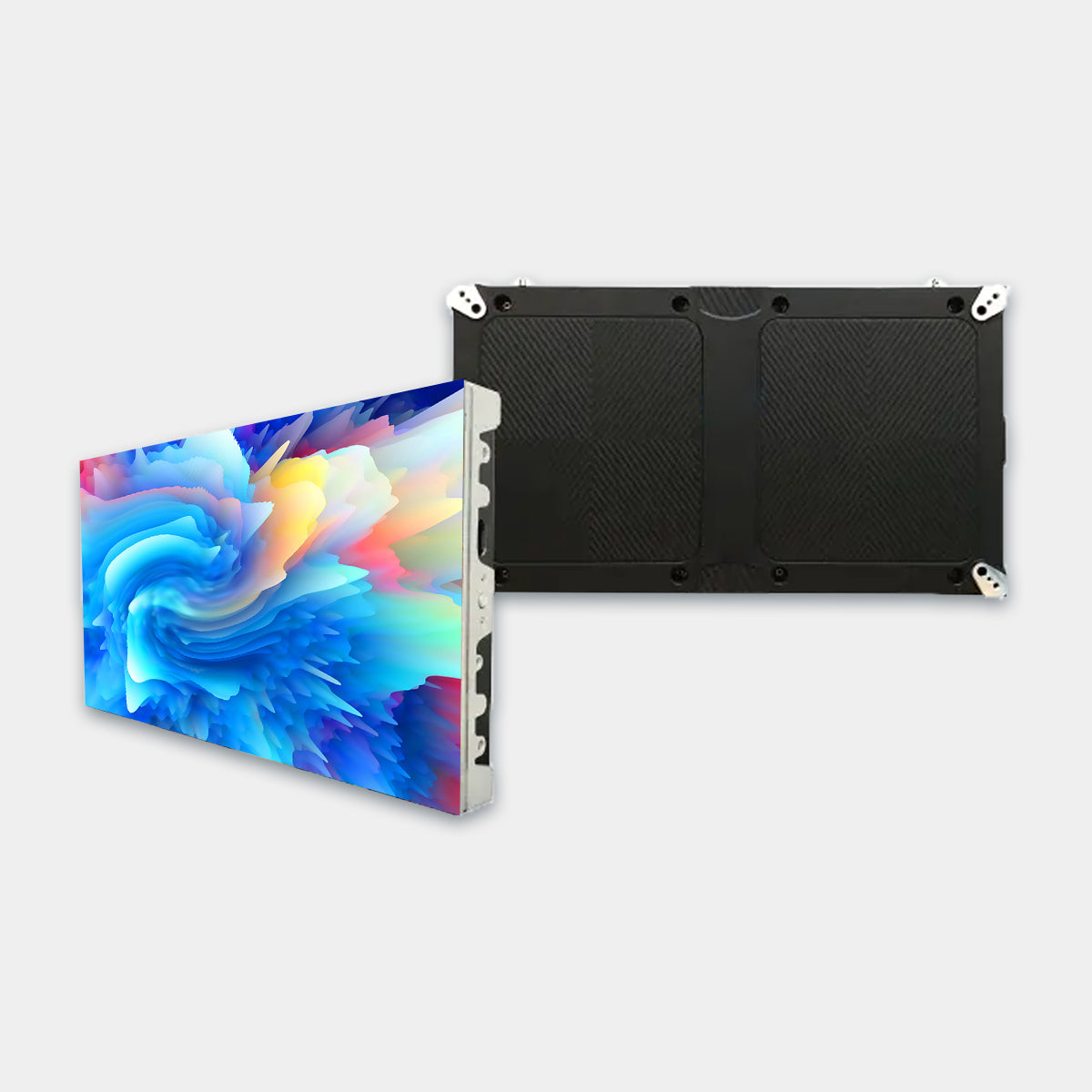

KF-093
- LED Video Panels -
Panel Name: KF-093
Pixel Configuration: 4-in-1 MiniLED Common Cathode
Pixel Pitch: 0.93 mm
Resolution: 645 x 363
Pixel Quantity: 234,135 Pixels
Pixel Density: 1,155,625 Pixels/㎡
LED Tile Quantity: 2 PCS Per Panel (2 x 1)
Material: Aluminum Die Cast
Dimensions: 23.62 x 13.29 x 2.34" (600 x 337.5 x 59.5 mm)
Weight: 16.5 lbs (7.5 kg)
- LED Tiles -
Resolution: 323 x 363
Pixel Quantity: 117,249 Pixels
Dimensions: 11.81 x 13.29" (300 x 337.5 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️
Brightness: 450 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 18 bit
Optimal Viewing Distance: 3 ~ 30 ft (0.9 - 9.0 m)
View Angle: Horizontal 170° / Vertical 170°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 82 W/Panel
Max. Power Consumption: 180 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP40
Warranty: 5 Years
Explore KF Series
KF-125
- LED Video Panels -
Panel Name: KF-125
Pixel Configuration: 4-in-1 MiniLED Common Cathode
Pixel Pitch: 1.25 mm
Resolution: 480 x 270
Pixel Quantity: 129,600 Pixels
Pixel Density: 640,000 Pixels/㎡
LED Tile Quantity: 2 PCS Per Panel (2 x 1)
Material: Aluminum Die Cast
Dimensions: 23.62 x 13.29 x 2.34" (600 x 337.5 x 59.5 mm)
Weight: 16.5 lbs (7.5 kg)
- LED Tiles -
Resolution: 240 x 270
Pixel Quantity: 64,800 Pixels
Dimensions: 11.81 x 13.29" (300 x 337.5 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️
Brightness: 450 nits
Refresh Rate: ≥ 3,840 Hz
Color Depth: 18 bit
Optimal Viewing Distance: 3 ~ 39 ft (1.0 - 12.0 m)
View Angle: Horizontal 170° / Vertical 170°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60 Hz
Avg. Power Consumption: 82 W/Panel
Max. Power Consumption: 182 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP40
Warranty: 5 Years
18 Bit+ Image Processing
Ultra high-definition LED video wall supported by pro-clarity technology with 18Bit+ image processing capability, 6000:1 contrast ratio, 16-bit grayscale, and high refresh rate 3840Hz.
170°+ Viewing Angle
Divergent light beams directly from flip-chip-on-board LEDs provide high-intensity luminance and a larger light-emitting area. It delivers high brightness and a wide viewing angle.
HDR10+ Available
A wider color gamut comes along with HDR bringing more colors and making the images more real. Fine-pitch LED video wall with HDR, excellent good viewing quality.
Front Serviceable Design
Panels can be completely disassembled from the front allowing for installations with no rear access to meetings. Replace faulty LEDs, power supplies, and data hubs without the hassle.
EXTREMELY LOW PIXEL FAILURE RATE
LOWER FAILURE RATE THAN SMD
Low thermal resistance generates less heat in high currents. That prompts lower display temperature, LED failure rates, and overall reliability.

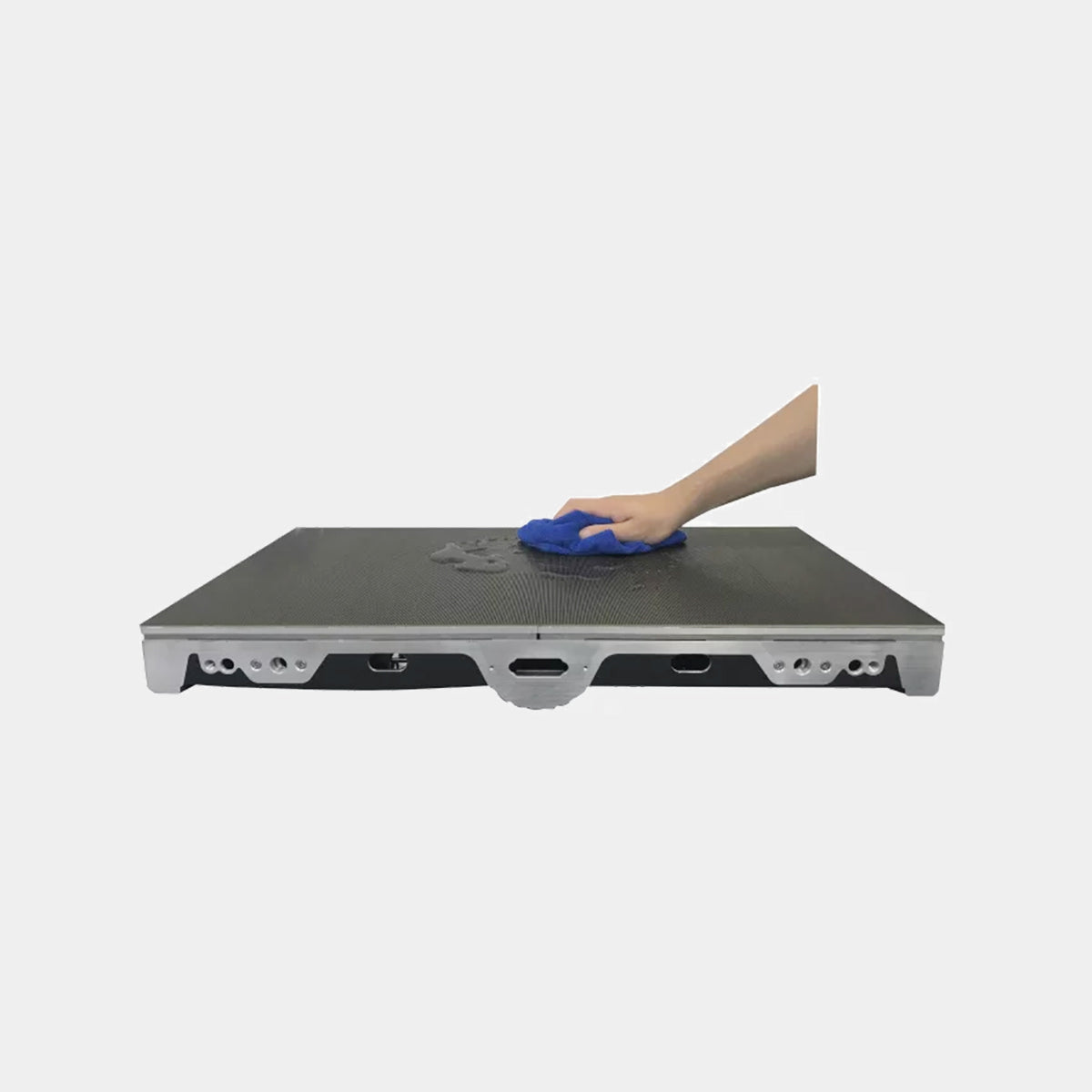

ADDED PROTECTIVE COATING
ANTI-COMPRESSION AND ANTI-COLLISION
The anti-collision resin surface of COB LED provides excellent protection against moisture, dust, static, oxidation, and blue light.
Quick and Easy Assembly
QUICK RELEASING CABLES
All internal cabling is quick release allowing for service without tools. A simple, modular design allows for a quick and easy setup, and cableless interconnects keep things tidy.
Price List
KF-093 P0.93 COB LED Video Panel
KF-125 P1.25 COB LED Video Panel
Sales Department - Viking Sales16@eachinled.com
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications.
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
