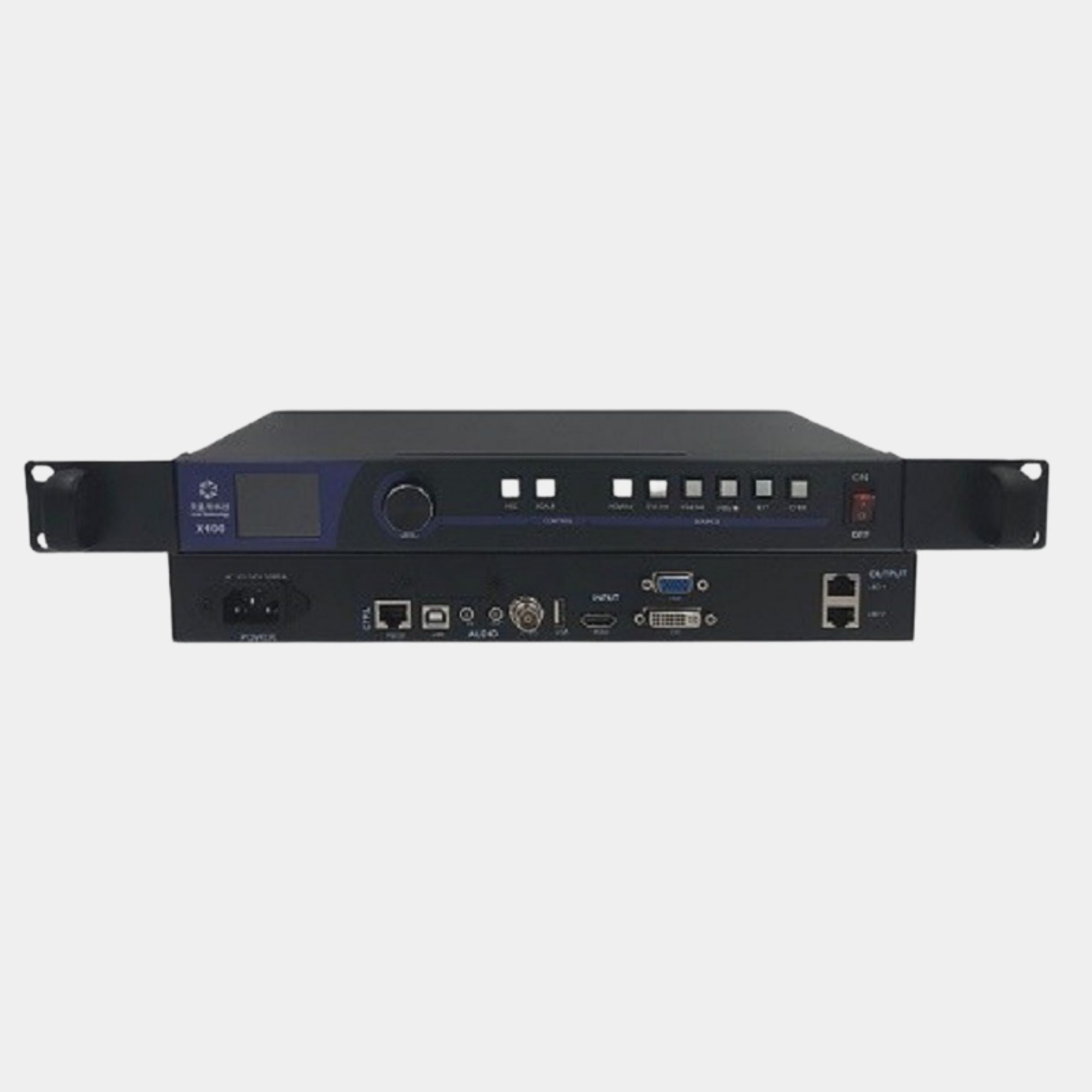

Linsn X100

X100, designed for small fixed installation LED screens, is a cost-effective all-in-one video processor. It integrates sender and video processor and supports USB-flash-drive plug and play. It supports up to 1.3 million pixels: up to 1920 pixels horizontally or 1080 pixels vertically.

1) All-in-one video processor integrated with the sender

2) Supports USB-flash-drive plug and play

3) With two outputs, it supports up to 1.3 million pixels

4) Supports up to 1920 pixels horizontally or 1080 pixels
vertically

5) Supports audio input and output

6) Supports DVI/VGA/CVBS/HDMI 1.3@60Hz input

7) Input source is switchable by a specific button

8) Supports EDID custom management

9) Supports full-screen scaling, pixel-to-pixel scaling

1) Power
- Working Voltage: AC 100-240V, 50/60Hz
- Rated Power Consumption: 15W

2) Working Environment
- Temperature: -20℃ ~ 70℃
- Humidity: 0%RH ~ 95%RH

3) Physical Dimensions
- Dimensions: 482.6x241.2x44.5mm
- Weight: 2.1kg
