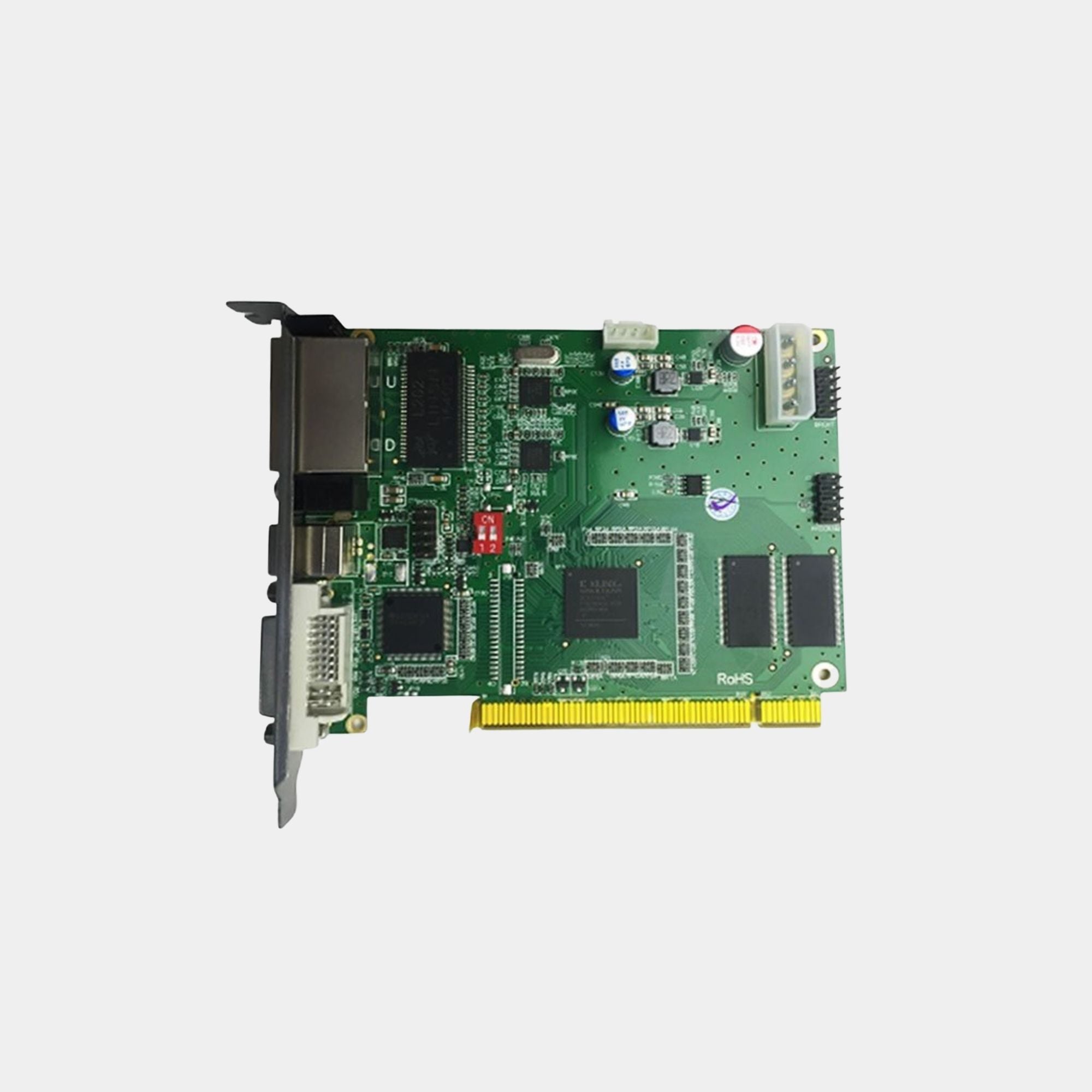

TS802 sending card is a video display controller for the full-color LED wall designed by Linsn. It maximum supports 2048x1024 pixels with zoom and rotation functions. Note: Please use GTX1050 or other graphics cards with the same or higher configuration.

        TS802 is a sending card for the full color LED screens and supports single and double color led screens. One card can support 1,310,720 pixels; supports 4,032 pixels in width at most; and 2,048 pixels at most in height.

        1) One DVI video signal input

        2) One Audio signal input

        3) The sending card is set by USB. It can be cascaded to drive a larger screen; up to 4 cards cascaded

        4) Two network outputs; single port maximum support 655,360 pixels

        5) Supports adjusting brightness manually (requires working with the outer box). Three scales can be set: 16-grade, 32-grade and 64-grade

        6) Supports 60Hz and 30Hz output mode

        1) Rated Voltage
        - Normal: 5V
        - Maximum: 5.5V
        - Minimum: 4.5V

        2) Rated Current
        - Normal: 0.50A
        - Maximum: 0.57A
        - Minimum: 0.46A

        3) Rated Power Consumption
        - Normal: 2.5W
        - Maximum: 3.1W
        - Minimum: 2.1W

        4) Working Temperature
        - -20℃ ~ 75℃

        5) Working Humidity
        - 0% ~ 95%
