Linsn SC801

$160.00
Quantity:

10% OFF for orders over $3000
5% OFF for orders over $2000
3% OFF for orders over $1000

DHL/UPS/FedEx Express
Shipping.Handling Time: 1 - 2 Days.
Transit time: 3 - 7 Days

Free Shipping on Orders Over $500

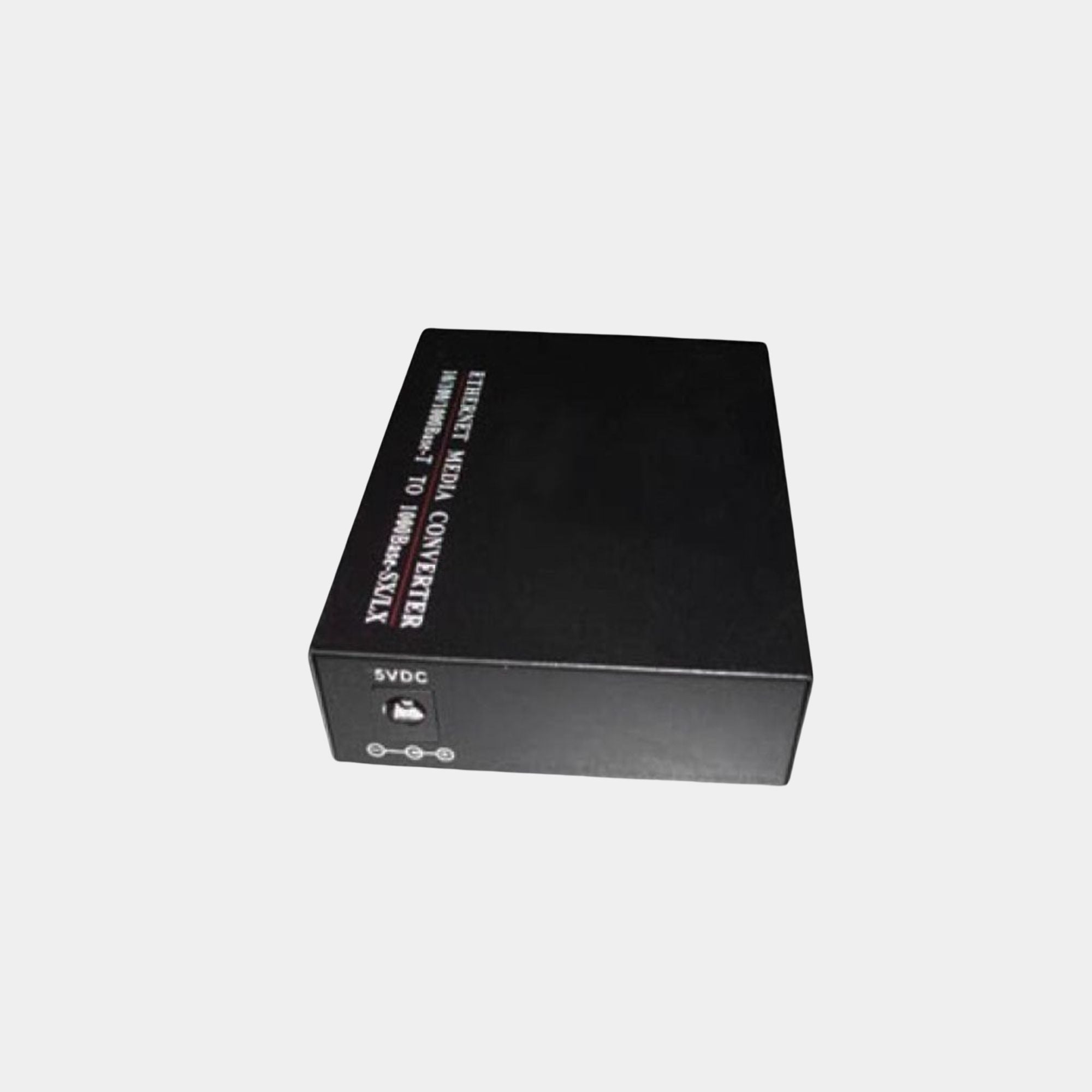

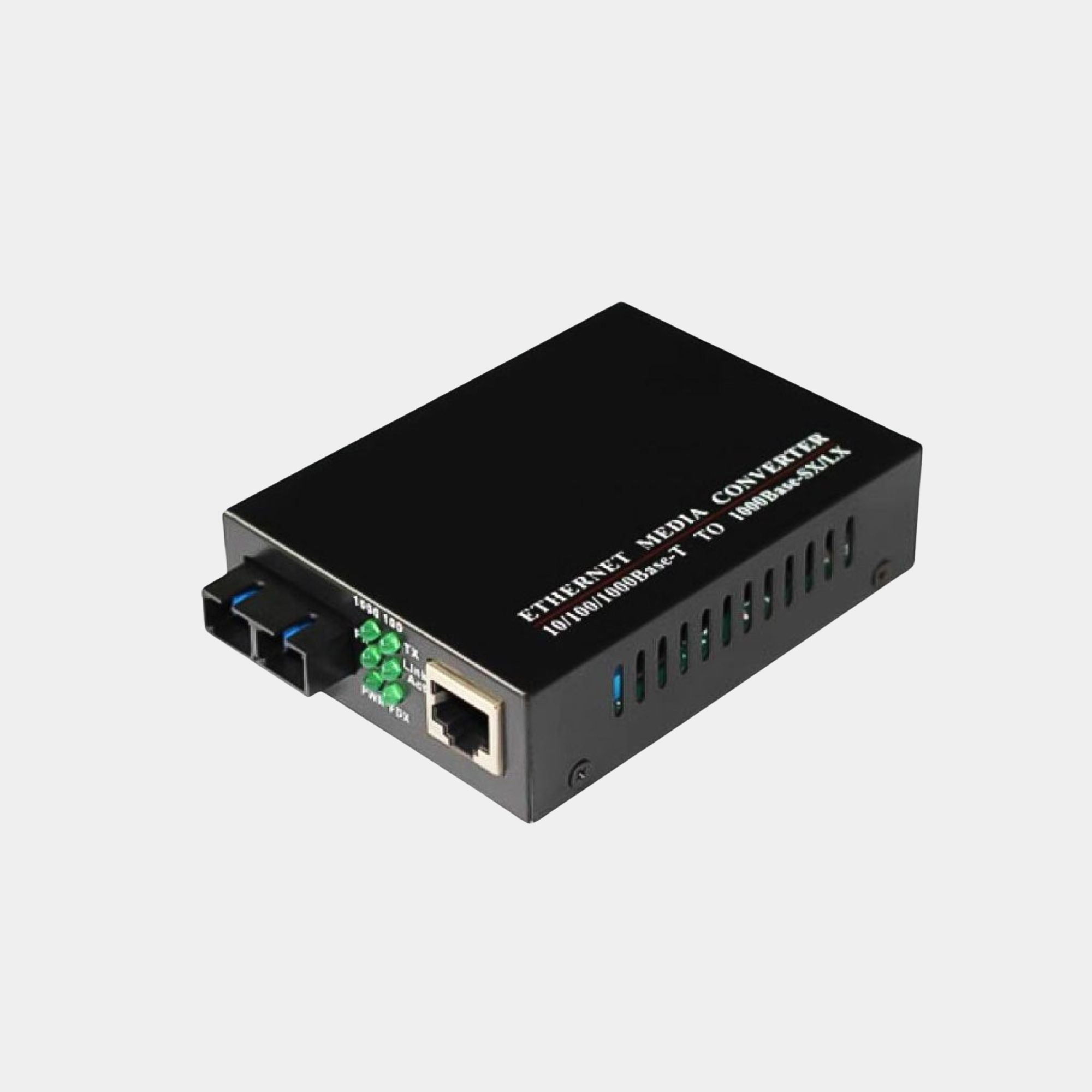

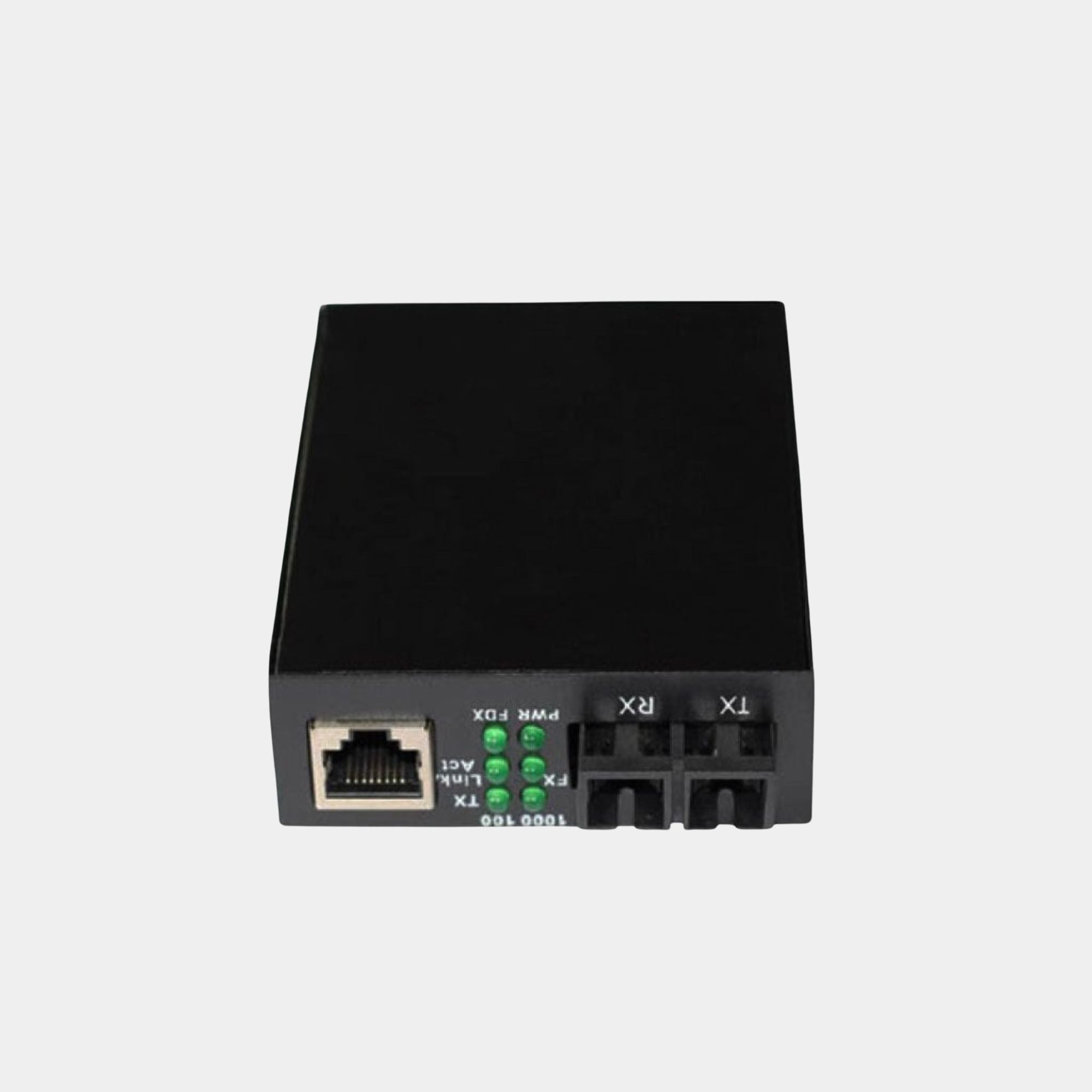

SC801 is a fiber converter released by Linsn with single mode for LED display. The LED display control signal can be transmitted to longer distances to ensure the integrity of the signal so that the whole LED display system is more stable, reliable and convenient.

      1) Sending card RL45 output to TX converter

      2) TX converter to RX Converter with Optical Fiber

      3) RX convert to receiving card RL45

      1) Data port
      - International standard network cable connector

      2) Optical fiber port
      - SC Model

      3) Multi-mode transmission distance
      - 500M
      - Fiber: 50/125

      4) Single-mode transmission distance
      - 20KM
      - Fiber: 9/125(transmission distance about 10KM)or 5/125

      5) Wavelength of multi-mode
      - 850nm

      6) Light power
      - -5 ~ -14dBm

      7) Sensitivity
      - -23dBm

      8) Wavelength of single-mode
      - 1310nm

      9)Light power
      - -3 ~ -10dBm

      10) Sensitivity
      - -23dBm

      11) Optical Fiber with 2 cores or above

      1) Size
      - 167mm x 108mm x 35mm

      2) Hole diameter
      - 0.35cm

      3) Power supply
      - 110V ~ 230V, 50Hz/60Hz
