Explore BWM Series
BWM-125
- LED Video Panels -

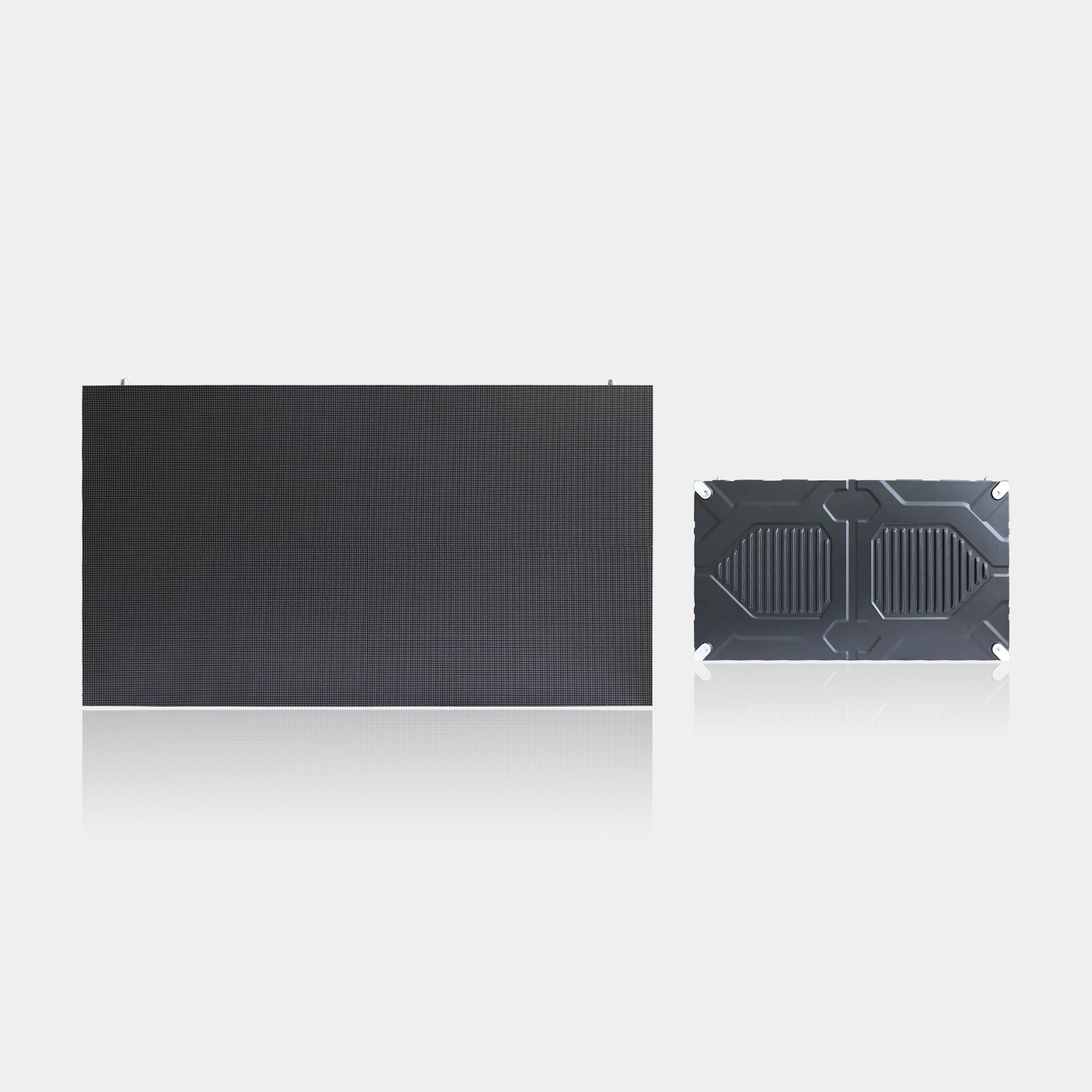

Panel Name: BWM-125
LED Configuration: NationStar®️ SMD1010
Pixel Pitch: 1.25 mm
Resolution: 480 x 270
Pixel Quantity: 129,600 Pixels
Pixel Density: 640,000 Pixels/㎡
LED Tile Quantity: 4 PCS Per Panel (2 x 2)
Material: Aluminum Die Cast
Dimensions: 23.62 x 13.29 x 1.93" (600 x 337.5 x 49 mm)
Weight: 10 lbs (4.9 kg)
- LED Tiles -
Resolution: 240 x 135
Pixel Quantity: 32,400 Pixels
Dimensions: 11.81 x 6.64" (300 x 168.75 mm)
Weight: 1 lb (0.75 kg)
- Additional Information -
Application: Indoor / Fine Pixel Pitch
Receiving Card: NovaStar®️
Brightness: 800 nits
Color Depth: 16 bit
Scan Mode: 1/60
Optimal Viewing Distance: 3 ~ 39 ft (1.2 - 12.0 m)
View Angle: Horizontal 160° / Vertical 160°
Input Voltage: 100 ~ 240V AC
Frame Frequency: 50 / 60Hz
Avg. Power Consumption: 82 W/Panel
Max. Power Consumption: 180 W/Panel
Maintenance Type: Front
Lifespan: 100,000 Hours
IP Rating: IP30
Warranty: 5 Years
16:9 4K RESOLUTION
ULTRA-FINE PITCH
HIGH REFRESH RATE
PERMANENT INSTALL
Cost-Effective Choice
BWM Series LED Video Panel
BWM panels feature a high refresh rate and crisp contrast and deliver more brightness with less heat – consuming less power for more cost savings vs traditional video projectors.
High Resolution
Smooth View
True 16:9 aspect ratio HD video quality & precisely matched SMD LEDs offer exceptional color reproduction and gamut to reach everyone in your venue.
Lightweight Frame
Enclosed Front Serviceability

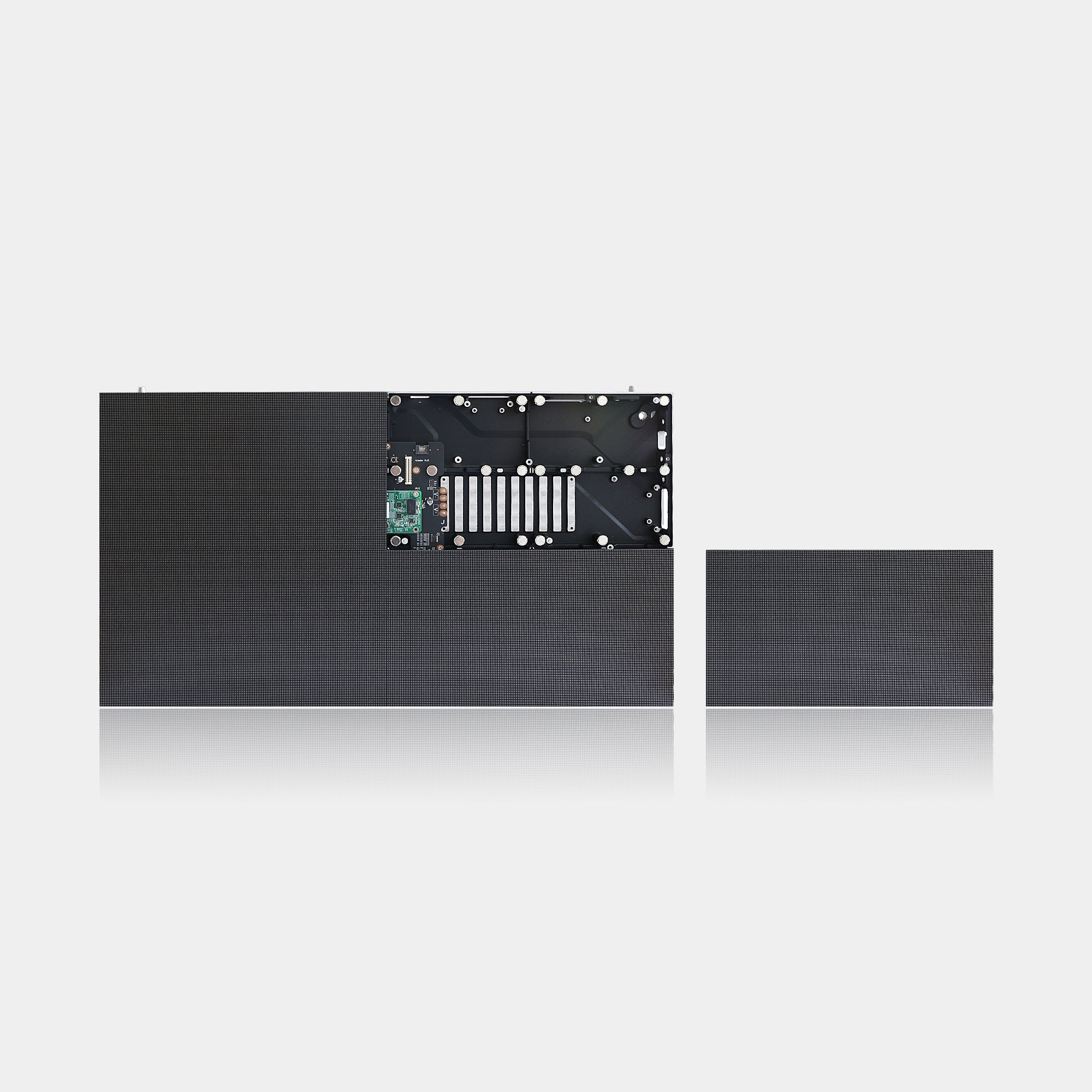

Fully front-serviceable with accessibility to internal components, power/data connections, and mounting holes via magnetic modular sections for ease-of-installation and simplified maintenance. Fully enclosed design ensures proper safety with minimal clearance from the wall surface.
Price List
Sales Department - Pan Pan@eachinled.com
Need Help?
Whether you need a specific size, a complex design, or a unique installation, EACHIN can assist you with designing a curated solution that perfectly suits your specifications.
Whole Industry Chain Control
No Fears for 5 Years
All panels are backed by an uncompromised 5-year warranty for parts & labor along with unlimited technical support to give you confidence and peace of mind with your investment.
