NovaStar VX4S-N

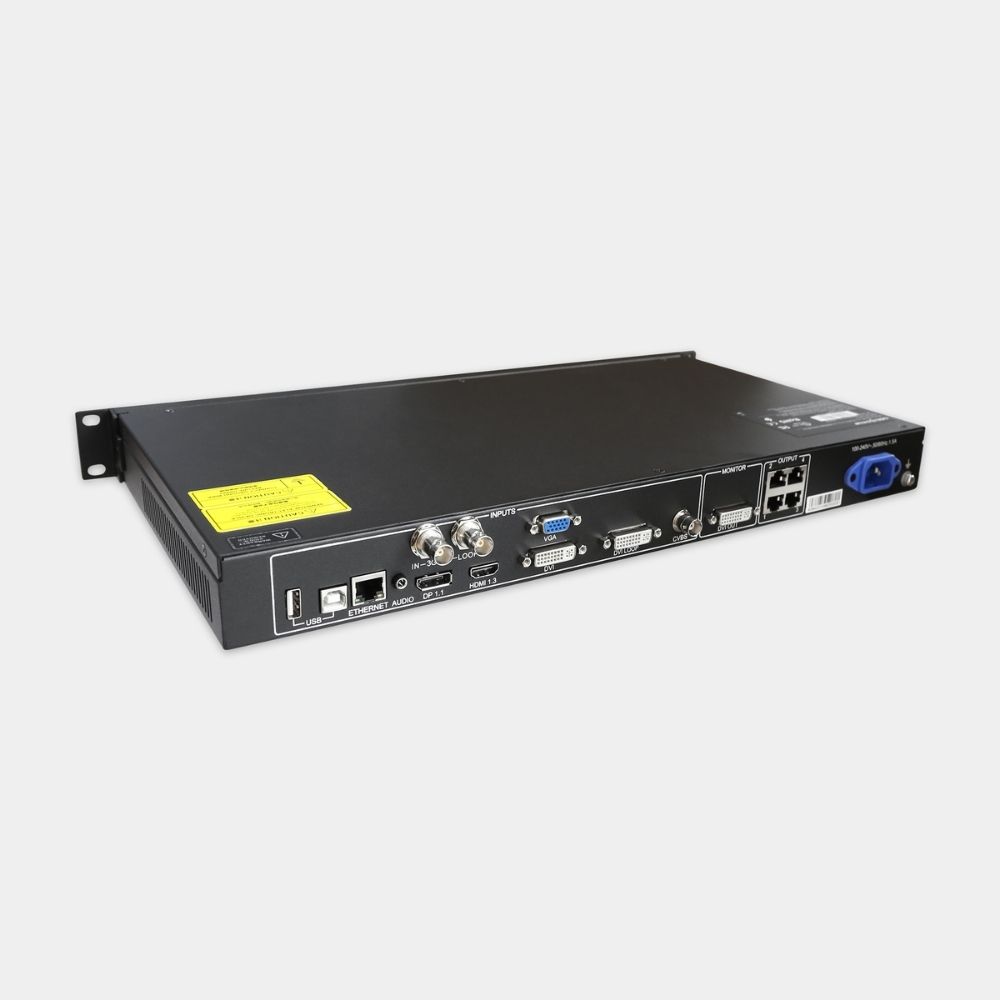

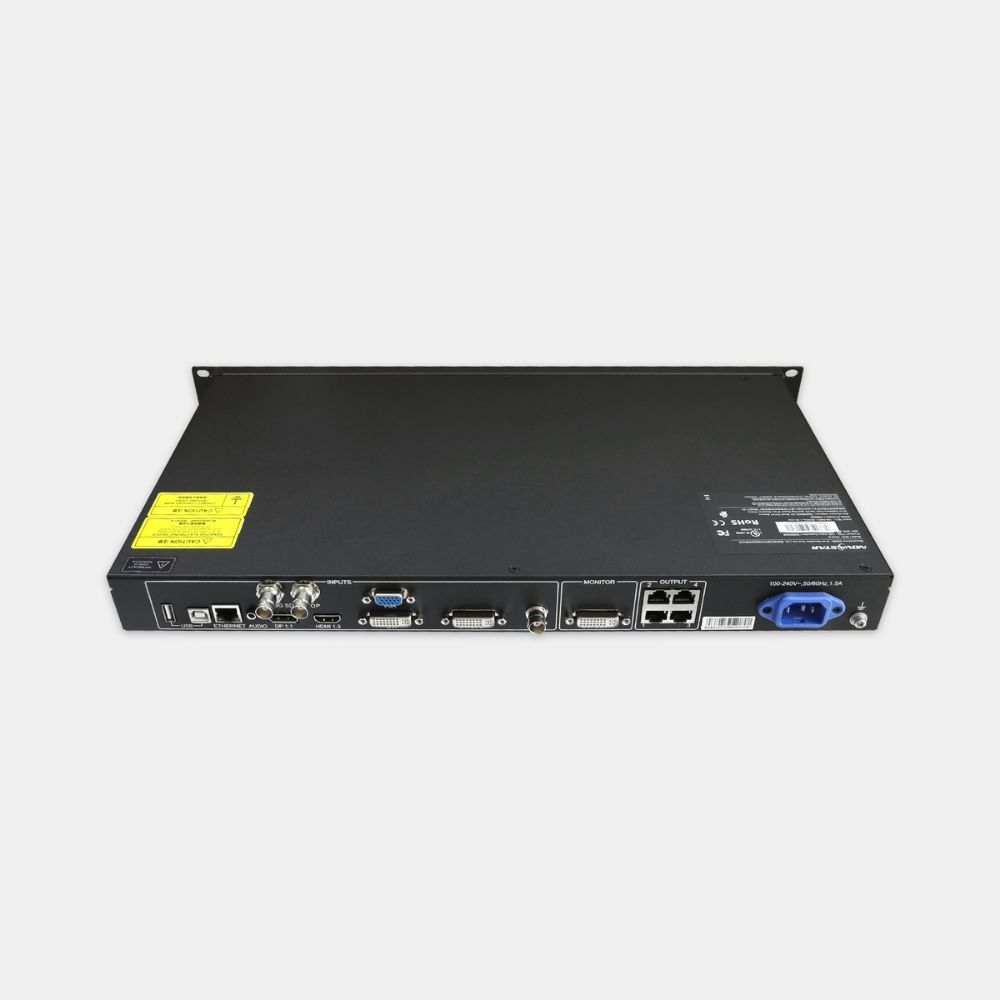

- Inputs -
1 x CVBS
1 x VGA
1 x DVI (IN+LOOP)
1 x HDMI 1.3
1 x DP
1 x 3G-SDI (IN+LOOP)

- Outputs -
4 x Ethernet Outputs
1 x DVI Outputs

1 x Ethernet Port
1 x USB (Type A)
1 x USB (Type B)

1. Quick screen configuration supported
- Computer software for system configuration is not necessary.

2. Seamless high-speed switching and fade effect supported to present professional-quality images

3. Adjustable PIP position and size, free control at will

4. Nova G4 engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines

5. White balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure the reproduction of true colors

6. Independent external audio output supported

7. High bit-depth video input: 10-bit and 8-bit

8. Multiple device units connected for image mosaic

9. NovaStar's new-generation pixel-level calibration technology was adopted, ensuring a fast and efficient calibration process

10. An innovative architecture was adopted, allowing for intelligent screen configuration
- The screen debugging can be completed within several minutes, which significantly shortens the preparation time on the stage.
